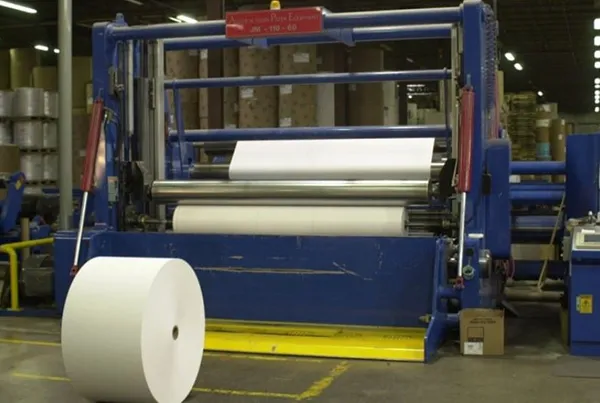

PRECISION SLITTING & REWINDING
GRADE DIVERSITY:
All grades of coated and un-coated paper & board, Poly, Synthetic, 10# paper to 50PT Basis wts, Specialty papers, Food Grade, Release Liner
SPECIAL CAPABILITIES:
Edge guide, lineal foot counter, advanced tension control, Oscillation of rolls, ream/counter roll converting, breaking or building diameters, ribbon slitting, large format slitting, core repair converting, salvage converting
IN-BOUND PARENT ROLL
Max Roll Width 106”
Min Roll Width 11”
Max Roll Diameter 80”
Min Roll Diameter 25”
Max Roll Weight 10,000 lbs
Core Size 3”-4”-5”-6”-8”-10”-12”-16”
OUT-BOUND CONVERTED
Max Slit Width 110”
Min Slit Width 3” Max 15-out
MaxDiameter 60”
MinDiameter 8”
Core Size 3”-4”-5”-6”-8”-12”
