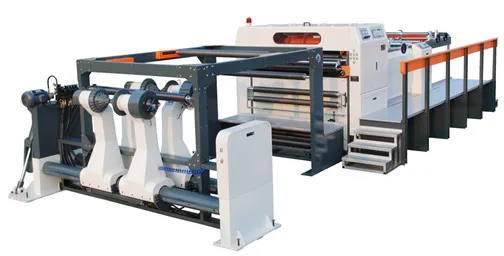

Paper Sheeting Machine PCM1104-1400 Catalogue

Model	PCM1104-1400
No of Paper Reel	4
Reel Width ( Max )	1350 mm
Reel Diameter ( Max )	1600 mm
Sheeting System	Rotary cutter
Sheeting Length ( Max, Min )	1600 mm, 450 mm ( +/- 0.3 mm )
Paper Type ( Max, Min )	550 gsm, 45 gsm
Capacity	100 - 250 m / min / reel
No of Operator	2
Power Supply	415 V / 3 ph / 50 Hz
Motor Rating	30 kw
Machine Weight	16000 kgs
Machine Size ( L X W X H )	16.0 X 3.7 X 2.2 m
Paper Counter	Digital counter
Features	Include hydraulic shaftless paper reel unwinding station, automatic tension controller, paper straightening system, PLC control sheeting length adjustment, electrostatic discharger, automatic vacuuming system, automatic counting and tab inserting system and automatic paper piling system.
