Method Machine Works

Model

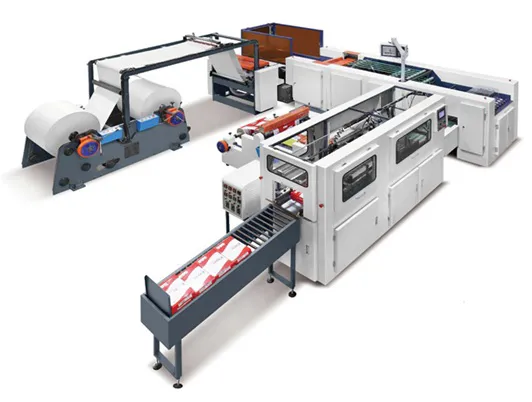

PCMA4-10

No of Paper Reel

1 X 2

No of Pocket

2

Reel Width ( Max )

860 mm

Net Slitting Width ( Max )

840 mm

Reel Diameter ( Max )

1200 mm

Core Diameter

76.2 mm

Paper Grammage

60 - 100 gsm

Sheeting Length

297 mm

No of Paper Sheet per Ream

0 - 500 sheets

Ream Height ( Max )

65 mm

Paper Feeding Speed ( Max )

230 m per minute

Paper Cutting Speed ( Max )

840 cut per minute

Ream Discharging Speed

10 - 12 reams per minute

Paper Cutting Accuracy

+/- 0.2 mm

Power Supply

415 V / 3 ph / 50 Hz

Motor Rating

15.0 kw

Compressed Air

0.6 - 0.8 Mpa

Machine Weight

8000 kgs

Machine Size ( L X W X H )

7.00 X 8.00 X 2.10 m
