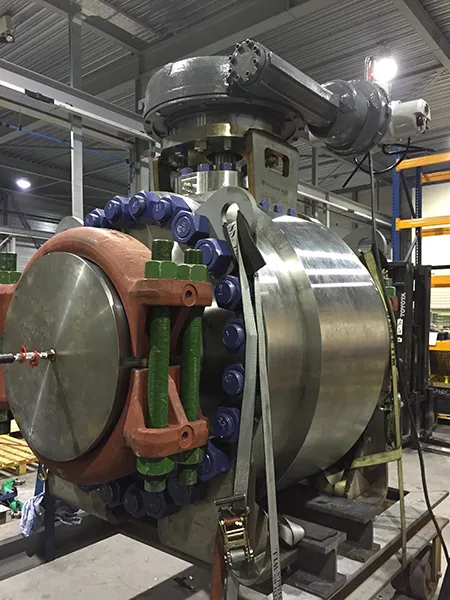

TRUNNION MOUNTED Ball (API 6A)
The ball is mounted on a trunnion which supports the pressure load. The seats are spring energized, to allow tightness at low pressure, while at high pressure, the seats are energized by the pressure itself. Body construction is three pieces, bolted joint, made by forging, forged or rolled bar. STANDARD DESIGNAPI 6A
BODY JOINTSplit Bolted Body
FACE TO FACEFace to Face and End to End dimension as per API 6D or ASME B16.10
END CONNECTION
PORTFull or Reduced Bore
RANGE SIZENominal Ball Bore 1 13/16” to 16 3/4”
RATING CLASS DESIGNATIONAPI 2,000 to API 20,000
Design
Valve Standard Feature
