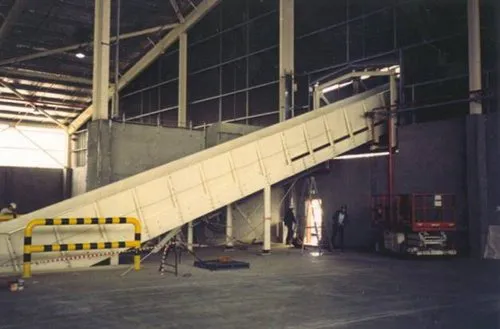

Slat Conveyors
James Brinkley Company Slat Conveyors are the workhorse of the pulper feed industry. They are designed for heavy, abusive service. It is common to drive lift trucks onto the load area, drop bales or rolls from a height, or shove a load of bale sideways onto the conveyor. No other type of conveyor can take as much abuse. We can provide units with up to 2500 lbs./ft of length load capacity at over 10’ slat width. With the Brinkley Slat Conveyor design, inclination changes are easy to do.
Brinkley Slat Conveyors feature:
A-36 structural steel construction designed to AISC code, with MC 18 x 42 roller ways reinforced for long spans if necessary
¼” or 3/8” thick A-36 steel formed slats for better impact resistance
Roller type chain with optional lubrication fittings and high side bars for improved cleanliness
Adjustable wear rails with abrasion-resistant plate surfacing in loading area to take the stress off the slats and chain when loading
Drives with gear reducer sized for sliding chain friction. Standard speed is 30 FPM, higher or lower speeds available.
Spherical roller bearings sized for L-10 lives of over 100,000 hours
End or side loading configuration
Optional Features:
Walkways and platforms with handrails and kick plates
Weather enclosures and galleries
Backstops and brakes
Tail and side pit covers
Weighing or metering systems
Load leveling mechanisms
Variable speed drives and controls
Special paint and coatings
