Ircon-Solaronics

DryMaster

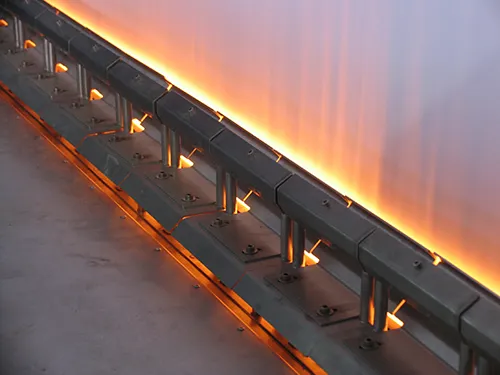

“The DryMaster is a state of the art and patented electric IR drying system with many features that will improve your paper quality as well as machine capacity, and at the same time minimize energy use and maintenance cost. The DryMaster is easy to operate and has a variety of connection options to other computer or QCS systems when required.”

Main features of the DryMaster system

• More energy efficient then other IR systems on the market. The design of the IR module is optimized and we use best quality of quarts protection glass, IR lamps, gold reflectors, air foil design for efficient scrubbing of the air boundary layer

• Higher drying capacity, up to 200 kW/m/frame combined with higher heat transfer, and IR frames can be installed face to face

• Space saving installation compared to gas IR and air dryers

• Better profiling capability, standard zone width of 75 mm (3”) or 37 mm (1,5”)

• Control coating immobilization automatically, using a built in array of CD  web temperature sensors

• Investment and installation is cost efficient, due to smaller electrical cabinets and less electric cables required, since the power is controlled locally on the IR modules instead of remotely in big cabinets

• Easier maintenance – Each module has an indication of lamp failures, fuse failure or thyristor failure, voltage, current and power measurement and measurement of internal operation temperature including alarm. This on-line diagnostic information is available through a built in web server.

• IR modules can be replaced without tools, which allow quick replacement for maintenance purpose

• The solid state relays has soft start and optimized “half cycle” modulation to minimize current peaks, disturbance on the electric net, overtones and transformer heat up.
