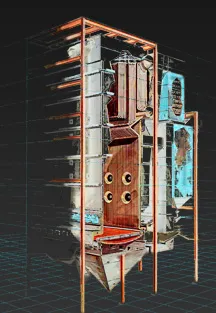

SOLID FUEL BOILERS

Indeck LaMont solid fuel boilers are designed to fire biomass fuels for hot water generation. These biomass steam boilers have forced circulation features and a vertical tube wall furnace to fire a wide range of biomass fuels. We offer several different types of solid fuel boilers including Two Drum Open Pass and Multi-Pass Design, Single Drum MSW Design, VL Boilers, and A-Boilers that range in capacity from 25,000 to 600,000 lb. steam/hr. The following are the main features of our solid fuel boilers:

• They are designed and built to generate hot water through controlled force circulation, they are not converted boilers.

• Identical radiant surface to convective surface ratios in each tube provides for even heat distribution.

• The radiant section and convective section are connected in series which prevents steaming.

• The efficiency is maximized with counter flow heat transfer (water to combustion gases).

• Thermal stresses are minimized by the tangent tube wall construction

• Condensation of acid gases on the outer casing are prevented by a seal casing design that keeps the flue gas isolated from the insulation.

• Selection of bubbling fluidized bed or grate technologies.
