HP VALVES

P.O. BOX 50040 NL-7554 PAHENGELO

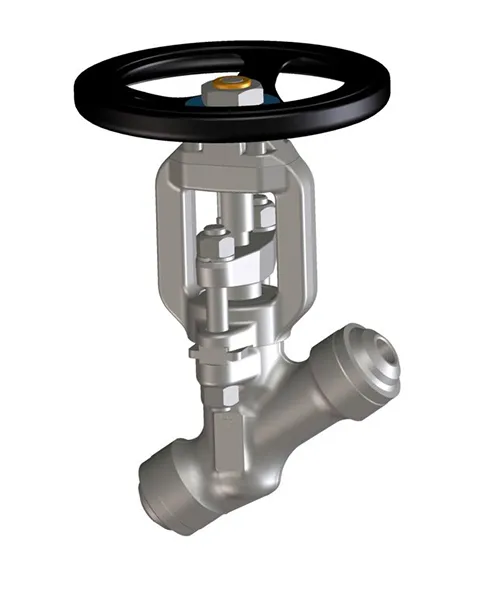

FORGED STEEL Y-PATTERN THROTTLE TYPE GLOBE VALVES, BONNETLESS

Fig no.02.Y.L.F

Pressure rating3500 / 4500 lbs

PN 500 - PN 760

Size range1/2 - 2

Body materialsSA105N, SA350-LF2, SA182-F22, SA182-F91, SA182-F92, SA182-F316(L), 1.0460, 13CrMo4.5, 11CrMo9.10, 1.4903, 1.4901, 1.4404

End connectionsSW, BW

FeaturesIntegral Bonnet (Bonnetless), Floating Backseat, Bayonet Body/Yoke-Connection
