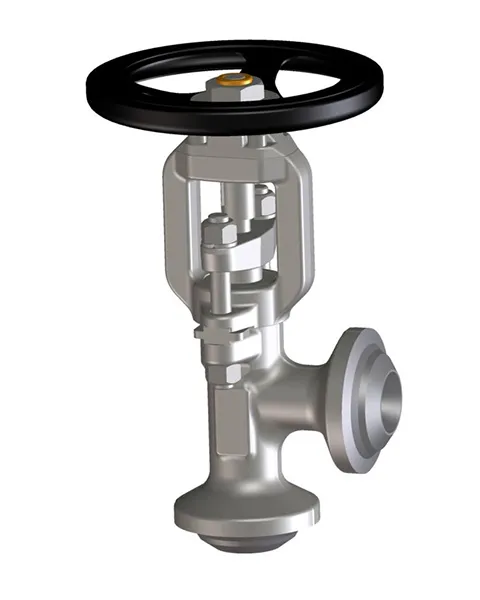

FORGED STEEL ANGLE TYPE CONTINUOUS BLOW DOWN VALVE, BONNETLESS

Fig no.09.A - A12

Pressure rating1500 / 2500 lbs

PN 160 - PN 400

Size range3/8 - 2 1/2

Body materialsSA105N, SA182-F12, SA182-F22, SA182-F91, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903

End connectionsSW, BW, NPT, Flanged

FeaturesIntegral Bonnet (Bonnetless), Floating Backseat, Bayonet Body/Yoke-Connection
