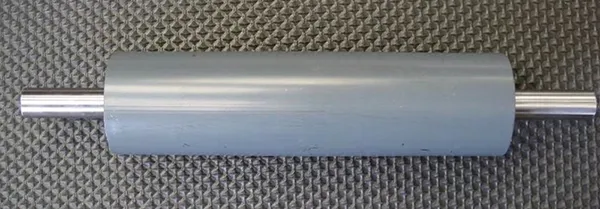

Conveyor Pulleys

A conveyor pulley is a mechanical device similar to a conveyor roller that is used to change the direction of the belt in a conveyor system or to drive the belt or to put tension on the belt.

A conveyor pulley is more heavy-duty than a roller and is used at either end of a conveyor, or near the drive/motor. Choosing the right conveyor belt pulley can get tricky, which is where Heinrich Brothers Inc. can offer expert assistance.

Choose One of the Many Types of Conveyor Belt Pulleys:

Drive Pulley / Head Pulley

A Drive Pulley or Head Pulley is used for the purpose of driving a conveyor belt. They are normally mounted in external type bearings and driven by a motor and reducer. Conveyor head pulleys can be flat faced or crowned and many have lagging to reduce belt slippage. Conveyor drum pulleys, wing pulleys and spiral pulleys are the most common style of drive pulleys.

Return Pulley / Tail Pulley

Return/Tail pulleys are used to redirect a conveyor belt back toward the drive pulley. Conveyor tail pulleys can have internal bearings or can be mounted in external bearings and are usually located at the end of the conveyor bed. Conveyor tail pulleys commonly serve the purpose of a Take-Up pulley to keep tension on the belt.
