PIGGING BALL VALVES

PIGGING BALL VALVES

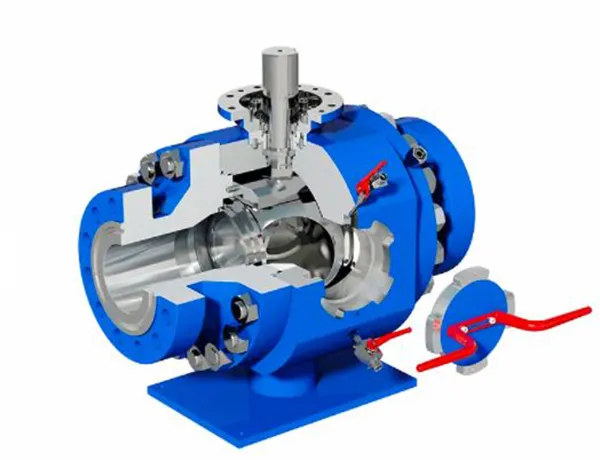

The Hartmann pigging ball valve offers the functions and advantages of the metal-sealed ball valve and, in addition to being used as a shut-off valve, also functions as a loading and unloading station for pigs.

The advantages at a glance:

• Shut-off valve and pigging station in one
• Loading and unloading station for pigs
• Space- and cost-saving replacement for complex pig launcher systems

Hartmann pig fittings offer a space- and cost-saving replacement for expensive pig launcher systems. In addition to the classic application as a shut-off valve, the pig ball valve also functions as a loading or removal valve for pigs. A laterally integrated sluice, which is locked and secured by a bayonet system, allows pigs to be fed in or removed easily, quickly and safely.

TECHNICAL CHARACTERISTICS

• Design according to DGRL 2014/68/EU or API 6D
• Pure metal sealing
• Bladder Leak Rate
• Three-part housing (split body) made of forged material
• Trunnion mounted ball
• Anti-blowout shift shaft
• Automatic case pressure relief
• Line pressure dependent sealing force
• Double Block and Bleed (DBB)
• No electrostatic charge
• Security bayonet lock
• Collecting grid for pigs in the ball bore
• Maintenance free
