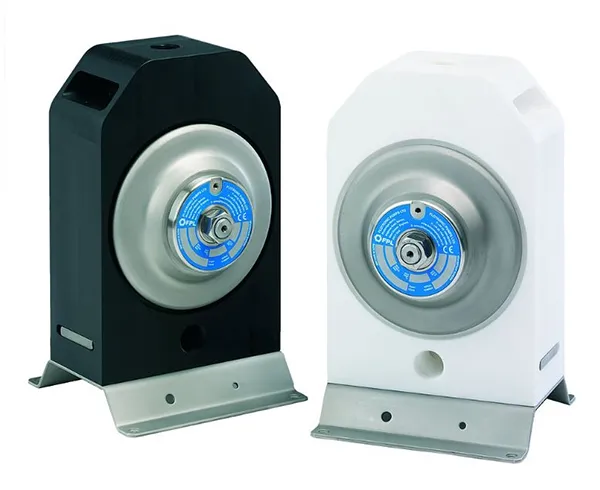

Minichem PTFE pump
A PTFE / Teflon double diaphragm pump designed specifically for the safe transfer of aggressive chemicals and other hazardous liquids, at flow rates up to 100 litres/minute through 1/2” and 1” connections.
The Minichem is machined from one solid block of PTFE; a unique patented concept based on Flotronic’s existing One Nut air operated double diaphragm design. A key benefit of the ‘One-Block’ design is that it avoids the need for separate manifolds. This means no manifold seals and therefore no potential leak paths.
Flotronic’s ‘One-Block’ approach enhances the ease of maintenance benefit which the ‘One-Nut’ design delivers. The pump is held together by one nut on the side opposite the external air valve - allowing in-line diaphragm replacement in less than 15 minutes and a complete strip-down and re-build possible in less than 20 minutes. One-Block means that Minichem maintenance need focus only on One-Nut disassembly … and on the ball valves only when necessary.
Flanged as well as threaded BSP versions of the ‘Minichem’ are available, ensuring full compatibility with existing PTFE-lined pipework.
All non-wetted ‘Minichem’ parts are in Polypropylene and Stainless Steel and ATEX approved versions are also available in both FDA approved PTFE and anti-static PTFE. With environmental protection in mind, Diaphragm Rupture Protection and fully pneumatic Alarm Systems are available.
MINICHEM ONE-BLOCK TECHNOLOGY DELIVERS OUTSTANDING BENEFITS:
One-Block technology without separate manifolds ensuring greater pump integrity
One Nut technology for ease of maintenance
suitable for aggressive chemical duties at flow rates up to 100 ltr/minute and temperatures up to 80ºC
flanged as well as threaded connections available in 1/2” and 1” sizes - so compatible existing PTFE-lined pipework
all external parts in Polypropylene or Stainless Steel
ATEX approved PTFE / Teflon and anti-static PTFE versions where required (FDA approved anti-static
self-priming, suction lift (2m/6.5ft dry and 8m/26ft wet)
easy maintenance of air valve when pump in-line.
