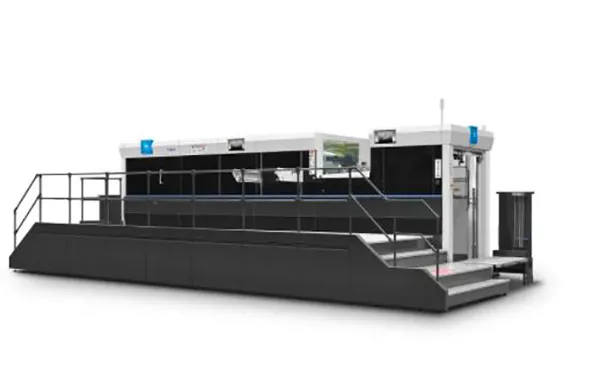

GUOWANG T-1060BF DIE-CUTTING MACHINE WITH BLANKING
GUOWANG T-1060BF DIE-CUTTING MACHINE WITH BLANKING
Short Description:
T1060BF is the innovation by Guowang engineers to perfectly combine the advantage of BLANKING machine and traditional die-cutting machine with STRIPPING, T1060BF (2nd generation) has all the same feature as T1060B to have a fast, accurate and high speed running, finishing product piling and automatic pallet change (Horizontal delivery ), and by one -button, machine can be switch to traditional stripping job delivery ( Straight line delivery ) with motorized non-stop delivery rack. No mechanical part need to be replaced during the process, it is the perfect solution for customer who need a frequent job switching and fast job changing.
Feature Highlights
FEEDING UNIT
-Non-stop feeding with automatic pile lift and pre-pile device. Max pile height 1800mm
-High quality feeder head with 4 sucker and 4 forwarder to assure stable and fast feeding for various of materials* Optional Mabeg feeder
-Front control panel for easy operation
-Anti-static device for feeder and transfer table*option
-Photocell anti step in detection
TRANSFER UNIT
-Double cam gripper bar structure to make the sheet closer to the working platform and stripping frame, more stable in high-speed operation
-Mechanical double sheet device for cardboard, supersonic double sheet detector for paper *option
-Pull and push side lay suitable for thin paper and thick cardboard, corrugated
-Paper speed reducer to make smooth transfer and precise positioning.
-Side and front lay are with precise photocells, sensitivity adjustable and can be set by monitor
DIE-CUTTING UNIT
-Die-cutting pressure controlled by YASAKAWA Servo System Max. 300T
Max. Die-cutting speed 7500s/h
-Pneumatic quick lock upper&lower chase
-Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.
SMART HUMAN MACHINE INTERFACE (HMI)
-15" and 10.4" touch screen with graphical interface at feeder and delivery section for easy control of machine at different position, all settings and function can be easily set through this monitor.
-Self diagnosis system, error code and message
-Full jam detection
STRIPPING UNIT
-Quick lock and center line system for stripping frame to minimize job changing time
-Pneumatic upper frame lifting
-Micro adjustment
-Stripping make ready table to reduce job setting time*option
BLANKING UNIT
-Quick lock and center line system for blanking frame to minimize job changing time
-Pneumatic upper frame lifting
-Micro adjustment
-Sheet inserting, one button sample sheet taking
-Automatic non-stop delivery and pallet exchange
-Safety light barrier with independent reset
DIE-CUTTING UNIT
-Die-cutting pressure controlled by YASAKAWA Servo System Max. 300T
Max. Die-cutting speed 8000s/h
-Pneumatic quick lock upper&lower chase
-Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.
