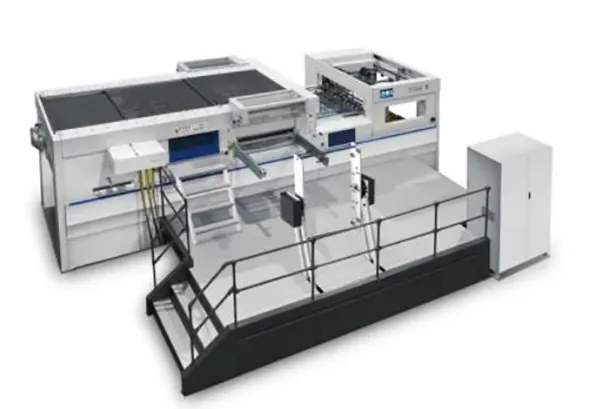

Guowang Automatic Hot Foil-Stamping Machine
Guowang Automatic Hot Foil-Stamping Machine
Short Description:
20 heating zone*
5000~6500Sheets/H
Max.320~550T pressure
Standard 3 Longitudinal, 2 Transversal foil shaft
Automatic calculation of pattern by intelligent computer
Feature Highlights
FEEDING UNIT
-Non-stop feeding with automatic pile lift and pre-pile device. Max pile height 1600mm
-High quality feeder head with 4 sucker and 4 forwarder to assure stable and fast feeding for various of materials
-Front control panel for easy operation
-Anti-static device*option
TRANSFER UNIT
-Mechanical double sheet device for cardboard, supersonic double sheet detector for paper *option
-Pull and push side lay suitable for thin paper and thick cardboard, corrugated
-Paper speed reducer to make smooth transfer and precise positioning.
HOT-STAMPING UNIT
-Stamping pressure controlled by YASAKAWA Servo System Max. 320T *C106DY can up to 550T-Pneumatic quick lock upper&lower chase-Two direction foil separating blower for huge size stamping.-20 heating zone with separate temperature controlled by smart monitor-Chase changer to have pre job setting and easy honeycomb plate changing
CROSS FOIL UNWINDING UNIT
-Standard 3 longitudinal and 2 transversal unwinding shaft can run at same time , each driven by independent Yasakawa servo motor, with foil length alarm.
-Precise hologram system *option for each shaft
INTERNAL FOIL HOLDER
-Internal foil holder can be pulled out for easy operation
-Separate stamping monitor to control foil
-Foil break detector
-Foil length alarm
SMART HUMAN MACHINE INTERFACE (HMI)
-15" and 10.4" touch screen at feeder and delivery section for easy control of machine at different position, all settings and function can be easily set through this monitor.
-15" independent monitor for foil stamping control, calculate and suggest the best pulling/stepping way for different pattern, can reduce foil waste by 50%
-Heating timer to reduce waiting time*Option
DELIVERY UNIT
- Non-stop delivery with automatic pile lowering- 10.4" monitor- Automatic non-stop delivery rack*only on R130Y- Anti-static device*option- Tap inserter*option
FOIL REWINDING UNIT
- Automatic foil rewinder WFR-280, 6 shaft each independently controlled by servo motor and all setting can be done on 10.4" LED touch screen*option
- Compact foil rewinder with 3 shaft
