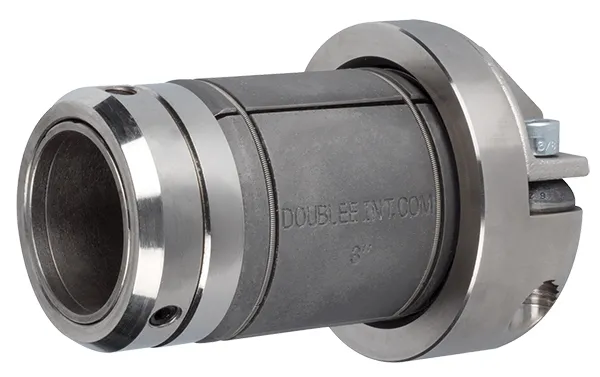

DF-1000 Torque-Activated Chucking System

DF-1000 Torque-Activated Chucking System

DF-1000 Torque-Activated Chucking System - Important Characteristics

Quick & easy roll changes without tools, air, or keys for three-inch core applications. Ideally suited for Goss Community presses.

• Quick & easy 30 second roll changeovers with no tools.
• Automatic activation – no need for air or operator intervention.
• Easily adjustable for changes in web width.
• Eliminates labor intensive and unsafe tapered cones or wedge

DF-1000 Core Chuck System Components

Double E DF-1000 with roll collar

Simple, strong clamping system for easy adjustment of core chuck. Smooth jaws grip tighter as more torque is applied without damaging coresHeavy–duty springs keep jaws in position and allow for expansion.Carbon fiber through shaft (recommended) supports heavy loads while keeping weight to a minimum; metal sleeve protect5 carbon fiber from abrasion.Retractable roll collar keeps roll in position; retractable fingers facilitate roll changes – simply slide a piece of core over the fingers then pull the assembly out of the roll.Collar’s fastening system allows quick and easy repositioning to fit various web widths
