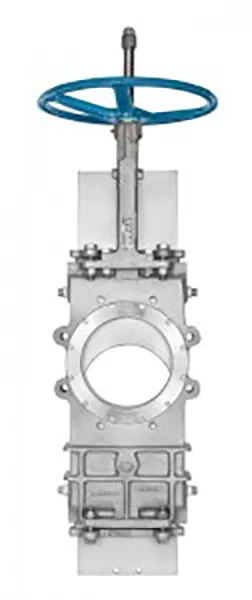

DEZURIK O-PORT GATE VALVES (KGO)
DESIGN FEATURES:
DeZURIK KGO O-Port Gate Valves can be used on virtually all types of liquids, slurries and dry materials, but are specially designed to handle high-consistency paper stock, wood chips, fly ash, and slurries with high solids content and highly viscous fluids. KGO O-Port Gate Valves are ideally suited for High Density Cleaners, Cyclones, Trash Dump Valves and Refiner Bypass or Isolation applications in the Pulp & Paper, Mining and Power industries
DeZURIK KGO-CST O-Port Gate Valves are available is sizes 2-24" (50-600mm) and feature a cast body rated to 150 psi CWP, and with uni-directional face sealing. Metal or resilient seats are available in 316 Stainless Steel, Terpolymer of Ethylene, Propylene and A Diene (EPDM), PTFE or Reinforced PTFE.
O-PORT GATE VALVES (KGO) SPECIFICATIONS
SIZE RANGE:
Cast Design 2- 24" (50-600mm)
Hilton Fabricated Design (H-1500) through 66" (1700mm)
TEMPERATURE RANGE:
to 500°F (260°C)
Higher temperatures available on application or on fabricated design
PRESSURE RATING:
150 psi CWP (1034 kPa)
BODY MATERIAL:316 stainless steel
