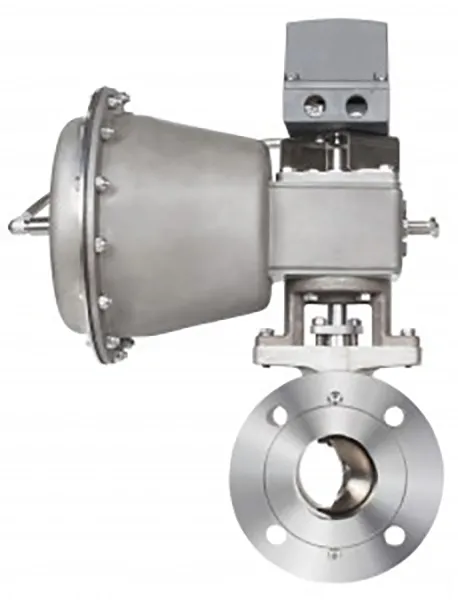

DEZURIK V-PORT BALL CONTROL VALVES

DEZURIK V-PORT BALL CONTROL VALVES

DESIGN FEATURES:

DeZURIK V-Port Ball control valves deliver superior performance and reliability required to optimize process performance. This versatile valve is designed for control of fibrous suspension applications, plus clean, dirty, viscous and corrosive liquids and gases. When operated by a high quality DeZURIK actuator and controlled by one of many high performing positioners, the DeZURIK V-Port Ball control valve can deliver control accuracy exceeding 0.5% as measured by the Benchmark Control Valve Diagnostics™ System. Control accuracy will increase process plant efficiency, improve overall profitability and reduce control valve life-cycle costs.

Specification:

V-PORT BALL CONTROL VALVES (VPB) SPECIFICATIONS

SIZE RANGE:
1-20" (25-500mm) ASME Class 150
1-12" (25-300mm) ASME Class 300

TEMPERATURE RANGE:
to 1000°F (540°C)

SHELL PRESSURE RATING:
to 285-740 psi (1960-5100 kPa)

SHUTOFF CLASS:
Per ANSI/FCI 70-2
Flexible Metal: Class IV
Rigid Metal: Class IV
Reinforced PTFE Seat: Class VI
Clearance Seat: 5% of max flow when closed

BODY STYLES:
Flanged or flangeless

BODY MATERIAL:
Carbon steel, 316 and 317 stainless steel, Hastelloy C

ACTUATOR TYPE:
Handwheel, chainwheel, PowerRac® double-acting and spring-return cylinder actuators, spring-return diaphragm actuator.
