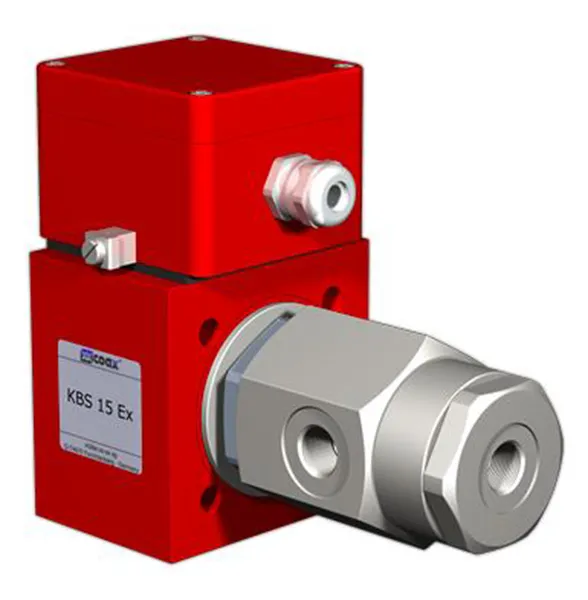

KBS 15 EX

KBS 15 EX

Ports

KBS threads NPT 3/8

Function

NC

Pressure Range

psi60015002250

orifice [mm]321.5

cv Value

l/min5.21.31.1

DN [mm]321.5

Media

gaseous, liquid

Flow Direction

A ⇒ B as marked

Switching Cycles

120 1/min

Switching Time [ms]

opening 250 closing 160

Media Temperature [°F]

DC: -4 to 104

AC: -4 to 104

Ambient Temp. [°F]

DC: -4 to 104

AC: -4 to 104

Weight [kg]

4,2

Nominal Voltage

UN 24 V DC, UN 230 V 40-60 Hz AC

Actuation

DC direct-current magnet, AC direct-current magnet with, separate rectifier outside , of the explosion-proof area

Protection

IP65

Energized Duty Rating

ED 100%

Connection

M16x1,5 terminal box
