co-ax valves inc.

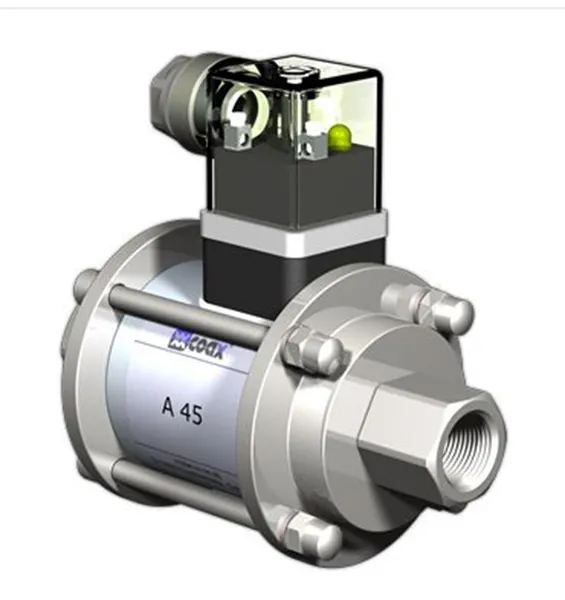

A 45

Ports

A45 threads NPT 3/8

Function

NC

Pressure Range

psi1506001800

DN [mm]642

cv Value

GPM0.680.370.09

DN [mm]642

Media

gaseous, liquid

Flow Direction

A ⇒ B as marked

Switching Cycles

200 1/min

Switching Time [ms]

opening 20 closing 45

Media Temperature [°F]

DC: 14 to 176

AC: 14 to 176

Ambient Temp. [°F]

DC: 14 to 176

AC: 14 to 176

Weight [kg]

1,2

Nominal Voltage

UN 24 V DC, UN 230 V 40-60 Hz AC

Actuation

DC direct-current magnet

AC direct-current magnet with integrated rectifier

Protection

IP65

Energized Duty Rating

ED 100%

Connection

plug acc. DIN EN 175301-803 , form A, 4 positions x 90° / , wire diameter 6-8 mm, M12x1 connector acc. DESINA
