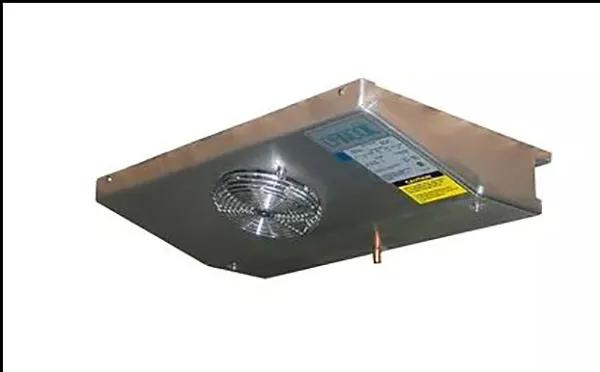

Trim-Rear Discharge - ATR

Trim-Rear Discharge - ATR

CANCOIL Model ATR is designed to mount in the top of a refrigerator and allow access to the entire top shelf area. The attractive low silhouette makes the TRIM-REAR DISCHARGE particularly desirable for display type refrigerators. It can also be used in back bars, undercounter cabinets or wherever space is at a premium.

The drain fitting is located to allow piping to be routed through back or bottom of refrigerator. Room for the expansion valve is provided inside the cabinet. Compact! Does a big job in little space.

FEATURES

• Truly trim profile, only 6 ½ inches high
• Attractive gained aluminum cabinet - long lasting and light weight
• Corrosion-resistant fans and fan guards
• Rear discharge prevents display door from sweating
• Drain line can be routed through back or bottom of refrigerator
• Room for expansion valve inside the cabinet
• Units are designed for internally equalized TXV or electronic expansion valve
• Piping and wiring connection points provided in rear for easy access
• Corrosion-resistant hardware to prevent discoloration
• Full collared, continuous plate type aluminum fin/copper tube coils provide efficient heat transfer surface
• Generous heat transfer surface to provide proper compressor balance
• Motor life lubricated and inherently protected
• Standard models are UL and NSF listed and CSA certified
