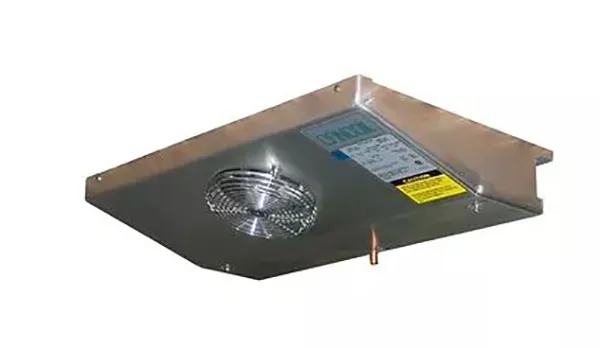

Model ETR Trim-Rear Discharge

Model ETR Trim-Rear Discharge

CANCOIL Model ETR is designed to mount in the top of a reach-in freezer, and allow access to the entire top shelf area. The attractive low silhouette makes the TRIM-REAR DISCHARGE particularly desirable for display type refrigerators. It can also be used in back bars, undercounter cabinets or wherever space is at a premium.

This low-temperature unit cooler has a completely automatic electric defrost system. High quality incoloy/stainless tubular heaters are used to ensure long life and trouble-free operation. Heater watt density is carefully selected for proper defrost. Drain pan and expansion valve compartment are automatically heated during defrost to provide proper drainage and prevent icing.​​

FEATURES

• Truly trim profile, only 6 ½ inches high
• Attractive grained aluminum cabinet, light weight and durable
• Full collared, continuous plate type aluminum fin/copper tube coils provide efficient heat transfer surface
• Generous coil surface to provide proper compressor balance
• Corrosion-resistant fans and guards
• Rear discharge prevents display door from sweating
• Room for expansion valve inside cabinet
• Piping and wiring connection points provided in rear for easy access
• Corrosion-resistant hardware to prevent discoloration
• Incoloy/Stainless tubular defrost heaters
• Factory set defrost termination, fan delay thermostat, and heater safety control
• Motors life lubricated and inherently protected
• External equalizer connection provided
