Brooksbank Valves Ltd

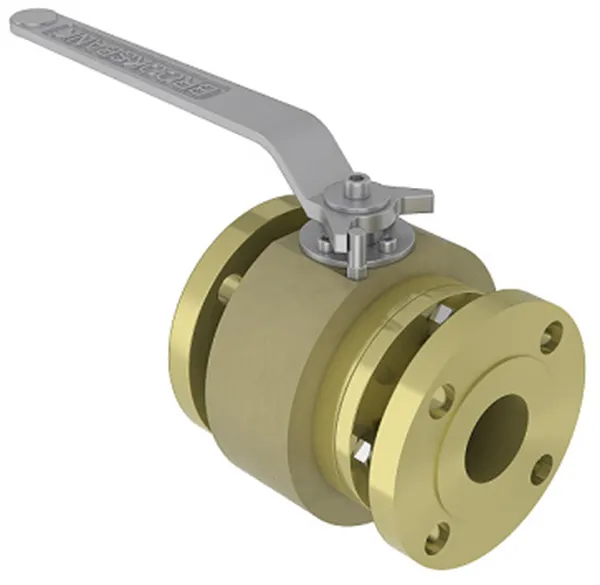

Wrought Ball Valve

The BAV119 is a flanged 2-piece bolted body reduced bore floating ball valve made of wrought or forged construction.

Made in conformance with the Pressure Equipment Directive 2014/68/EU, this firesafe by design valve has an anti-static/blowout stem, a solid ball, cavity pressure relieving seats and is also manufactured with a pressure equalising ball design making it suitable for bi-directional flow. This valve has been designed specifically for naval applications.

The BAV119 can be fitted with an extended stem and a locking facility, all specific to customers specifications. Manufactured as standard in Nickel Aluminium Bronze (NiAlBr) – ASTM B148/C95800, giving it long service life on seawater applications.
