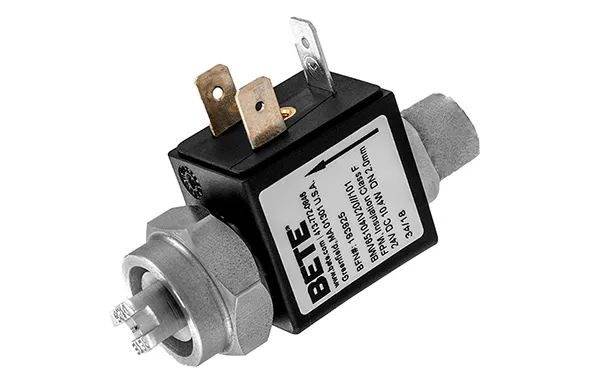

HYDROPULSE® ELECTRICALLY ACTUATED AUTOMATIC PRECISION SPRAY NOZZLES

BETE’s electric-actuated HydroPulse Spray Nozzles (EHPI) assure precision volumes of expensive ingredients and compounds are sprayed directly onto your processing target, with overspray waste virtually eliminated. Pair with the BETE FlexFlow™ Precision Spray Control System to achieve uniform coverage, even if you adjust your conveyor speed. Our Hygienic Electric HydroPulse is the recommended solution for precision Food Processing applications.

BENEFITS

Precision volume sprays directly on the target

Reduced waste and minimal overspray maintain a clean, safe environment

Uniform and repeatable coverage improves product consistency

Each nozzle produces a wide range of flow rates

Electric HydroPulse spray nozzles do not require a compressed air source and are capable of cycling on/off up to 150 cycles per second. These features afford the option of using high-frequency cycling known as Pulse Width Modulation (PWM) to vary the liquid spray flow rate at constant supply pressure with little change in spray performance by adjusting the duty cycle. When the spray cycles at a high enough frequency, coverage uniformity is maintained because the duration between pulses of spray is short enough to ensure there are no gaps in the spray coverage.
