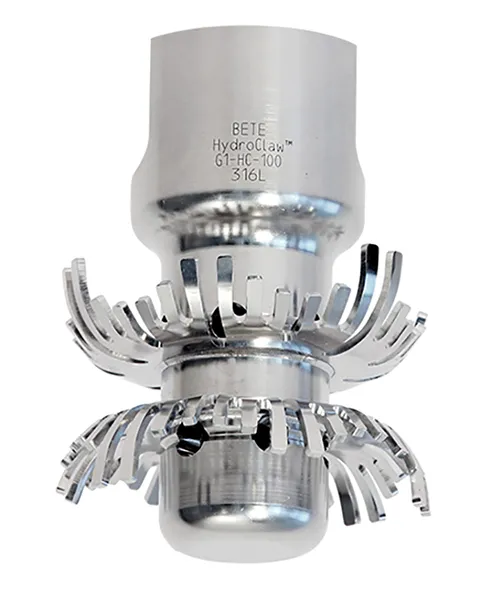

HydroClaw Clog-resistant Tank Washing Nozzles
The unique HydroClaw tank washing nozzle contains no moving parts and is clog resistant. This design cleans tanks efficiently and eliminates the need for maintenance and downtime, which is often required with rotational tank cleaning devices.The HydroClaw operates on low pressure/high flow, which allows for faster cleaning and reduced cycle times, which saves on water consumption, energy and chemicals. Ideal for tanks up to 10 ft (3m) in diameter.
DESIGN FEATURES OF THE HYDROCLAW TANK WASHING NOZZLES
Unique, patent-pending, clog-resistant design with no moving parts
HC-42 allows passage of particles 1/4” (6.4 mm) in diameter, HC-100 allows passage of particles over 1/4” (7.6 mm) in diameter – three times the free passage of a comparable spray ball
Made from FDA compliant 316L stainless steel for use in food-grade and sanitary Clean-In-Place (CIP) applications
Low pressure/high flow operation quickly cleans tank walls to reduce overall water consumption compared to a static spray ball
Self-draining and self-flushing
Laser-welded for durability
Available in a variety of connection sizes and types, including threaded, clip-on and welded
Clip-on nozzles include low-profile retaining pin for secure connection
Fits through compact openings: either 2-1/2" (63.5 mm) or 3" (76 mm) diameter
Optimal cleaning performance achieved at 30 psi (2 bar)
SPRAY CHARACTERISTICS OF HYDROCLAW TANK WASHING NOZZLES
Vigorous rinsing action quickly flushes solids and contamination from vessels
Complete 360° omnidirectional coverage
