Avcon Controls Pvt

Max. fluid temp.:

See Pressure-Temperature Chart.

Actuator :

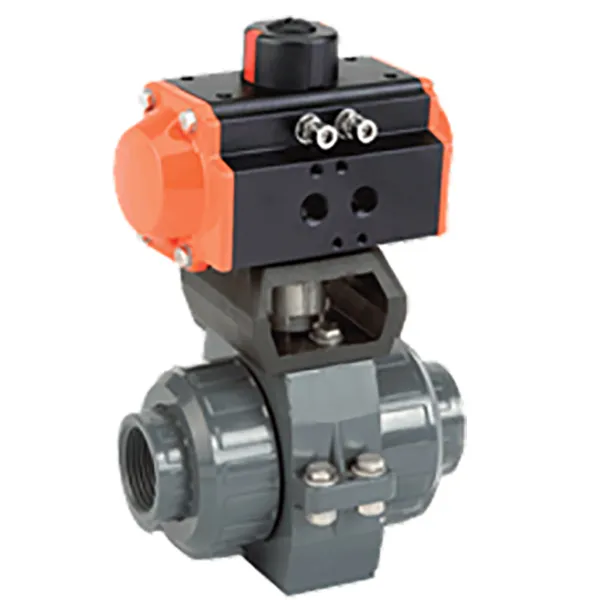

AVCON Model Rack & Pinion Type, With Aluminium Die Casted Piston & End Covers, Deep Anodised Extruded Aluminium Body.

Single Acting:

ACT-63-S/NC or ACT-63-S/NO

Double Acting:

ACT-63-D/Without Spring.

Pilot Pressure :

4 to 8.5 air or non-corrosive gas. The actuator has built-in Namur mounting interface any standard Namur Solenoid Valved can be fitted. Valve Position Indicator is incorporated as standard.

ACTUATOR:

Valves are supplied in ‘Normally Closed’ condition with Singe Acting, Spring Return Actuator.

Optionally:

‘Normally Open’ construction-Double Acting Actuator, Electro-Pneumatic Valve Positioner, I to P Converter, Valve Travel Indicator with Limit switches or Proximity switches, Stroke limiting mechanism, Manual override (in lieu of some accessory), Namur 3-way or 4-way Solenoid Valve, etc available.

Note :

 Note-1: While asking for offer - please specify name of the line fluid, pressure temperature, flow in M3/hr, end connections details, available air pressure, etc.

Note-2 : Ball valves in PVDF material are also available

Max. Temperature :

600C
