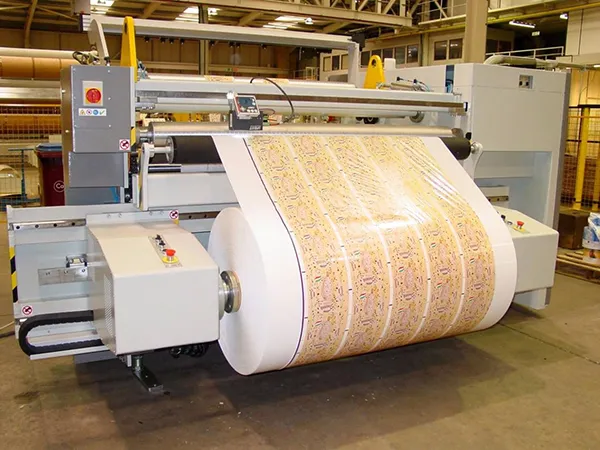

TitanSlitter ER610

TitanSlitter ER610

The TitanSlitter ER610, a twin-shaft cantilever slitter rewinder, is the fruit of extensive market research and exhaustive design and development work by Atlas Converting Equipment Ltd. to bring a more sustainable and cost-effective solution in slitting & rewinding technology.

The ER610 is a high performance slitter with an innovative and more environmentally friendly design which helps to make a contribution towards the reduction of carbon emissions. This helps to protect the environment with:-

Reduced power consumption

No hydraulics for oil-free, hygienic operation

Using un-lubricated compressed air for zero oil / air emissions

Less steel in a more compact design

One piece construction for rapid installation & start-up

Shipping in one 20ft container for reduced logistics

The ER610 is designed to process 1350 and 1650 mm (53 & 65 in) web widths at a maximum running speed of 450 m/min (1476 ft/min). The minimum slit width is 50 mm (1.97 in) with an option as narrow as 35 mm (1.37 ins) and a maximum rewind diameter of 610 mm (24 in) on twin cantilever differential rewind shafts.

The machine also features an integral edge-trim extraction system and an integral shaftless fixed-height unwind stand, with an option for jumbo roll floor ‘pick-up’ also available. The pneumatically controlled braking system provides highly accurate web tension control and a digital edge / line guide system controls lateral movement of the unwind reel to +/- 50 mm.

The ER610 control system has a 10” flat touch-screen terminal, non-language symbols, compact flash memory and fault diagnostics.

Slitting systems available are shear knives, rotary razor (burst) or razor slitting in air or groove. Optional features include a static electricity control system, laser (line) core positioning, splice table, EU safety guarding, laser safety scanners and unwind roll loading trolley.
