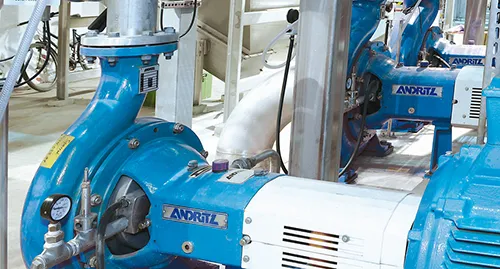

Self-priming centrifugal pump - AD series

ANDRITZ self-priming pumps - AD series, achieve high priming and degassing performance thanks to the integrated vacuum pump. With its semi-open impeller, the pump is designed for transporting solids-containing media (e.g. for pulp, paper, or wastewater) or viscous media (e.g sugar industry).

ANDRITZ self-priming pumps with an integrated vacuum pump prevent air from collecting at the impeller inlet and guarantee that the pump primes well, even with high gas content or unfavorable suction pipe arrangements. Thanks to these design features, the self-priming centrifugal pumps are perfectly suited for applications and processes in the sugar, pulp, paper, and food industry as well as for water supply and wastewater treatment.

The vacuum pump removes gas from the medium to guarantee trouble-free transport of the media. Thus, the unit is insensitive to conveying vicious (e.g. sugar concentrations of up to 70%) and high-solids media (e.g. for pulp, paper, or sewage applications) due to the semi-open impeller. The semi-open impeller also provides better efficiencies with viscous media compared to closed impellers. For more information on our self-priming centrifugal pump please have a look at our brochures in the sidebar or contact us directly.
