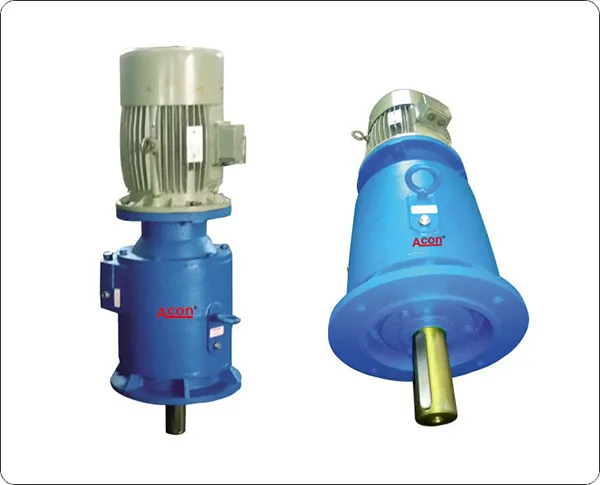

FLANGE MOUNTED GEARED MOTORS
General:- Acon Geared Motors and inline helical gear reducer have been developed in our factory to give co-axial,and compact and reliable mode of speed reduction at high torque.
The gear casings are manufactured from high grade cast iron and are liberally designed for maximum heat dissipation and cool running. Gear and pinions are made from special case hardening alloy steel and are specially heat-treated.
Range:- In addition to our standard range of production of 0.16 HP to 30 HP,0.1 to 700 RPM as detailed in our price list,other sizes can be offered on specific enquires.
Motor:- Electric motors used in gear units are totally enclosed,fan cooled,squirrel cage induction motors suitable for operation on 415V,50HZ,3 Phase,AC supply,Generally IP 54 enclosure,with class B insulation and as per IS : 325 - 1978. However motors with different electrical and mechanical characteristic can also be offered.
Lubrication:- Bearing and gears are lubricated by normal splashing of oil and requires no special attention for long peroids. First fill oil is not supplied. All geared motors are provided with oil filler cum breather plug,drain plug and oil level indicator.The first change of oil should be made after approximately 350 to 450 operating hours. The recommended oils are Indian oil Servo mesh SP 60 or Hindustan Petroleum - Gervil EP 5 or 4 equivalent.
Duties:- Normal duty and heavy duty series gaered motors are available under our regular manufacturing program,Light duty and extra heavy duty series can be offered on specific enquires.General guidance regarding proper selection of geared motor can be given supply of data regarding HP output speed,nature of load etc.
Testing:- All components are tested to rigid standard of tolerances. Assembled gear units are tested on no load for noise level,oil leakage and temperature rise.
Data to be furnished with enquiry:- The following details are to be furnished along with enquiry.1. Load in HP or KW2. Torque in N.M.3. Supply voltage and frequency details.4. Operating condition such as peak or shock loads giving magnitude and duration,ambient conditions,(i.e.)temperature humidity etc.,number of operating hours per day and mounting positing.
Salient Features:- 1.Geared motors,incorporation liberally designed and perfectly alignedpinions,gears and bearings are compact light in weight and provide a very economic,efficient and trouble free method of speed reduction.2. Geared motors are suitable for reversible drive and are supplied for variuos mounting positions depending upon requirement.3. Geared motors incorporate electric motors of proven design evolved over 25 years manufacturing experience.4. Geared motors are available at very short notice.
