WINDING & REWINDING

WINDING & REWINDING

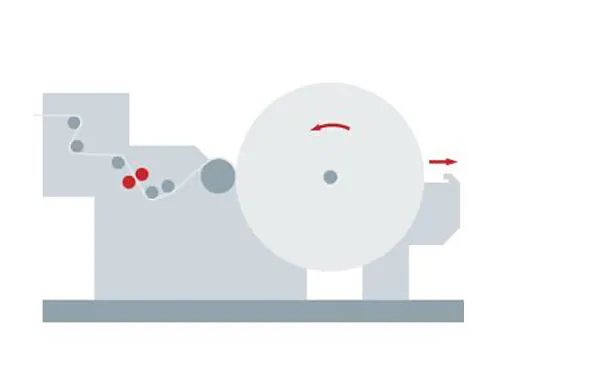

High flexibility master roll winder designed for easy operation with high reliability and low maintenance.

TECHNICAL DETAILS:

Basis weight range: 10-150 gsm*

Max. web width: 3600 mm

Max. master roll ø: 2500 mm

Max. operating speed: 400 or 600 m/min

Winding Shaft ø: 200 mm; 6''; 6 3/4 ; 220 mm

MAIN FEATURES:

• Surface Driven Design
• Tension and nip control with taper function
• Bowed Spreader Roll
• Drive drum with high grip coating
• Automatic roll doffing and cross cutting executed without speed variations
• Semi-automatic web threading

OPTIONS

• Integrated master roll storage station
• S-Wrap
• Motorized supporting roll
• Edge trimming system
• Master roll weighing system
• Flag applicator
• Master roll and winding shaft handling

BEST FOR

Carded and composite products and medium throughput spunlaid lines.
