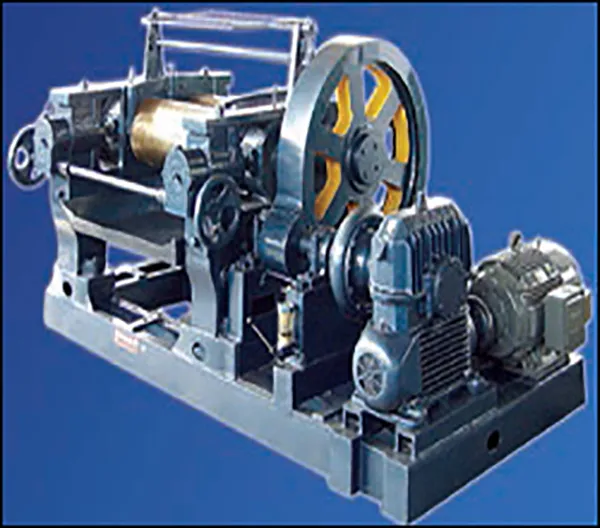

MIXING MILL
The basic desining and construction of the Zenith Mixing Mill has been subjected to continuous improvements. which have permitted them to keep pace with the day-to day needs of the industry.Available in sizes varying form 6” x 16” to 26” x 84” for compounding, warming, sheeting of various grades and types of rubber and other material.
SILENT FEATURES
No. Of Rolls Two
Material of Rolls Chilled Cast Iron hollow ground finished, bored through for even heating & cooling, having surface Hardness of 500 - 550 BHN
No. Of Guides Four (Two fixed and two movable)
Roller Bearing Spherical Roller Bearing
Type of Housing Sealed
Housing Housing is made from Graded Cast Iron of High quality casting free from holes & casting defects
Column Frame Two Nos. Made of Graded Cast Iron as per housing material
Nip Adjustment Nip adjustment at two roller ends is done manually using two separate screw attached to the housing through shear plates/fuses (0-10 mm)
Friction Gears High precision-machined sets made of forged steel
Lubrication System Radial Grease Lubrication Pump
Base Frame Uni - Bed design with heavy-duty base frame made up of Carbon Steel sections suitable for anti - vibration mounting or fitment with anchor bolts in concrete floorings
Transmissions Through a suitable Helical Gearbox
Standard Accessories Panel Board consists of Voltmeter, Ammeter, Phase Indicators, On & Off Switches, Emergency Stop with Auto reversal arrangement I Electromagnetic brake for emergency stop actuated by overhead cradle bar operated by limit switches I Gear covers I Safety Trip Rod\ I Material Collection Tray I Shear Discs/ Fuses I Return Water Funnels I Glass see through tubes I Radial Grease Lubrication Pump.
