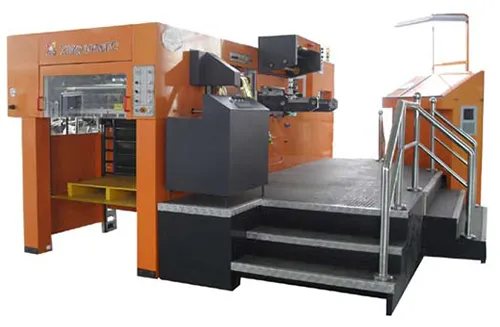

XMQ-1050F AUTOMATIC DIE CUTTING AND HOT FOIL STAMPING MACHINE
XMQ-1050F Hot foil stamping machine with only three longitudinal axles
Foil Stamping System
1. Four servo motor driven foil advancing shafts each individually programmable for short and long foil stepping 99 programmable short pull per shaft
2. Each foil advancing shaft is equipped with a holographic foil print mark reading photo sensor.
3. Industrial PC holographic foil stamping to print register system with manual register tolerance compensation device.
4.Free standing operation console with industrial pc, Pro – Face touch screen and 12 thermometer for foil advancing step setting and temperature control with machine pre-heating timer
5. Draw type foil roll bracket for loading foil outside at operation side
6. Foil lead through bar
7. 450 turning bar
8. Foil splitting blade
9. Heating base with 12 heating zone each temperature adjustable individually
10. Foil breaking control
11. Warning system for remaining foil
12. Oil cooled tension control shaft
13. Foil separating air blaster with air volume, blasting strength per zone and starting and ending time adjustment
14. Thin paper stretching air blaster with air volume, blasting strength per zone and starting and ending time adjustment
15. A/C motor driven inverter controlled brush rollers waste foil ejecting and foil tension system
