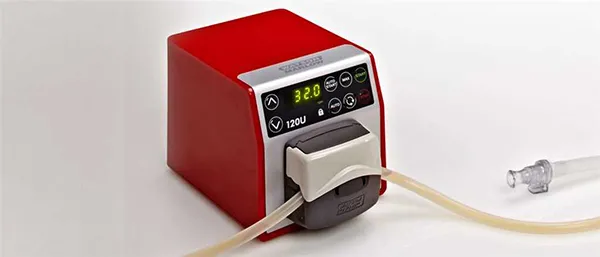

100 series cased pump
100 series pumps are small and stackable, saving valuable space in cleanroom, LAF and biosafety cabinet installations, capable of flow rates up to 190 ml/min.
The 100 series is the perfect pump for maximising yield in fermentation and cell culture applications. Ultra-compact and stackable for multiple feeds such as pH control, antifoam, nutrient and buffer addition, the 120 offers the ideal combination of size and technology to optimise your process. The 100 series pump is perfectly suited to single-use systems. Error-free tube change takes only seconds.
Biopharmaceutical processes require accurate and repeatable pumping that is easy to validate. With an exceptional 2,000:1 speed range, the 100 series pump delivers the flexibility and purity so vital to drug trials. A keypad lock secures your pumping parameters for consistent and repeatable performance.
Pumphead options available as standard (others available on request):
120R single channel, two roller pumphead for continuous tubing
114DV flip-top single-channel pumphead for continuous tubing
400D1 single-channel pumphead for continuous tubing
400DM2 twin-channel pumphead for manifold tubing
400DM3 three-channel pumphead for manifold tubing
Features and benefits
Smooth, wipe down case with no sharp edges to tear gloves and no bug traps. IP31 ingress protection
Superior speed control up to 2,000:1, ±1 % set speed accuracy, repeatable flow
Efficient and intuitive to use, requiring minimal key presses
Compact footprint requires minimal benchtop space
Maintenance-free, brushless DC motor
Single, twin or three channels of flow
Manual, remote or auto control
Three-year warranty
