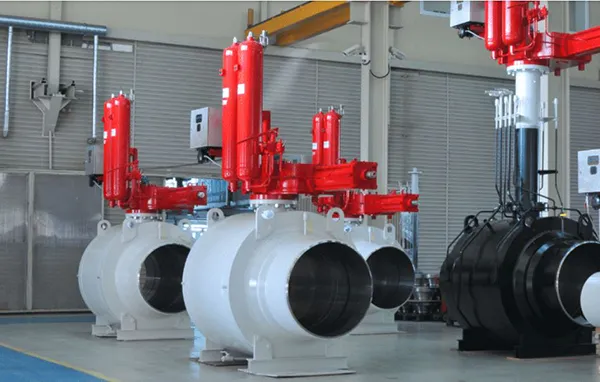

Full Welded Ball Valves - E60M

Full Welded Ball Valves - E60M

These types of valves are mostly forged steel. The body of valve is constructed by welding of all parts except stem housing. No sealing elements are used which might cause leakage through. Inspection and maintenance of such valves may be executed on live line.

SIL 2 & 3 certified. When required it can be manufactured from special material according to NACE corrosion standards and/or temperature class.

They are especially used in Natural Gas & Crude-Oil Pipelines for above and underground applications. Generally used between -46°C up to 100°C.

Standard is QSL2 acc. to API 6D. It can be manufactured with higher quality levels and special materials.

Application Areas

• Natural Gas Pipeline
• Crude Oil Pipeline
• Water Pipeline
• LPG Storage
• Marine Offshore
• RMS
• Refinery
• Combined Cycle PP
• Water Works
