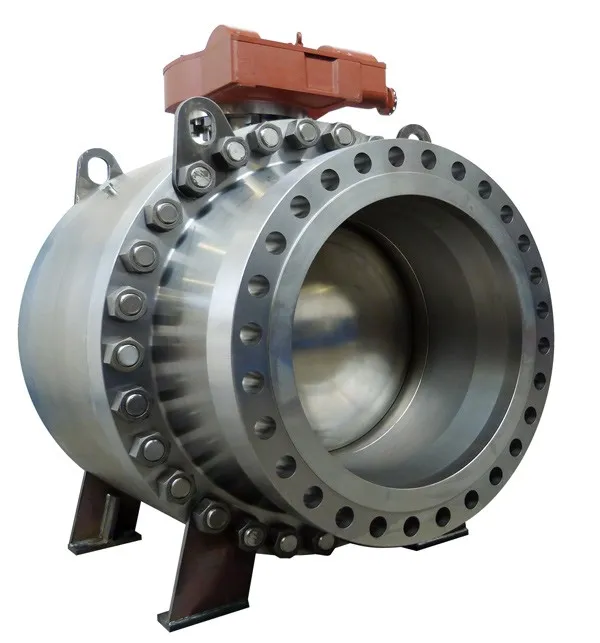

TRUNNION BALL VALVES
Full range of Trunnion Mounted Ball Valves to API 6D and BS 5351
Size range 2” to 56”
Full and reduced bore
Up to ANSI Class 2500
Carbon Steel, Low Temp Carbon Steel and Stainless Steel available as standard
Other material grades including Alloy and Duplex Steels upon request
Supplementary Testing RT, MT, DP, PMI Ect and Special Metallurgy available upon request
Firesafe certification to API 607 / BS 6755 Pt. 2 and ISO 10497
Materials:A105N/WCB, LF2/LCC, F1, F5, F9, F11, F22, F44, F51, F53, F55, 304/L, CF8/M, CF3/M, 316/L, 321, 347, Monel, Inconel, Hastelloy
Design:BS5351, API 6D, ANSI B16.34
Testing:EN12266-1, API 6D, API 598
End connections:Flanged RF, RTJ, Butt Weld Full and Hub End
Reduced bore Firesafe to BS 6755 PT2, API 607, ISO 10497, PN/DIN valves are available on Factory Lead times
Primary manufacturer:LVF SpA
