Actuators

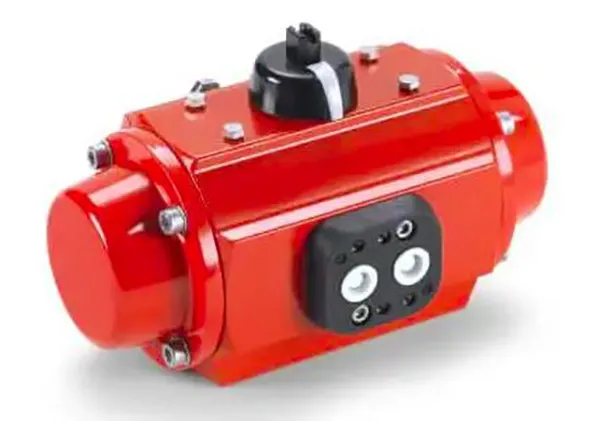

HPA Pneumatic & Electric Rack and Pinion Actuators

Four standard actuator sizes are available upon request:

Mini (designator “A1”), Small (designator “A2”) and 180° actuator (designator “A2T”), Medium (designator “A3”),and Large (designator “A4”).

Improved operational speed enables better valve opening and closing control. ATEX certification of Valves-Actuators assemblies is available on request at the time of order quotation.

• Pneumatic Rack and Pinion Actuators
• 90° Actuation for 2-way valves (Straight & Angle)
• 180° Actuation for 3-way (T-type) valves
• Actuators comply with industry standards for interface with ISO 5211, NAMUR and VDI/VDE 3845
• Actuated valves are available factory assembled or seperately, actuator and mounting kits
• Aluminum actuators are available as standard, Stainless Steel and Electric actuators are available upon request
• Limit switches, proximity sensors, position indicators, pilot valves and other accessories are available upon request
• Standard Temperature range: -32°C to 90°C (-25.6°F to 194°F)
• Optional: High Temperature: -30°C to 120°C (-22°F to 248°F)
• Low Temperature: -50°C to 80°C (-58°F to 176°F)
