High Pressure Triplex Plunger Pumps
High Pressure Triplex Plunger Pumps
UTPSL offers High Pressure Triplex Plunger Pumps for a wide variety of industrial applications. Products of intensive research and development,the UTPSL series plunger pumps are designed to achieve high standards of performance and reliability to withstand continuous duty operations & guarantee smooth and trouble free performance.
Constructional Details
The pump can be driven by TEFC Non flame proof / Flame Proof electric motor with Star Delta / DOL Starter, also offered with Soft Starter/VVVF Drive/Flame Proof Panel .Pump with Diesel Engine,manufactured as per requirement.
Compact Design , rugged construction pump with quieter operation.
Variation in flow & pressure possible by simple change of conversion kit.

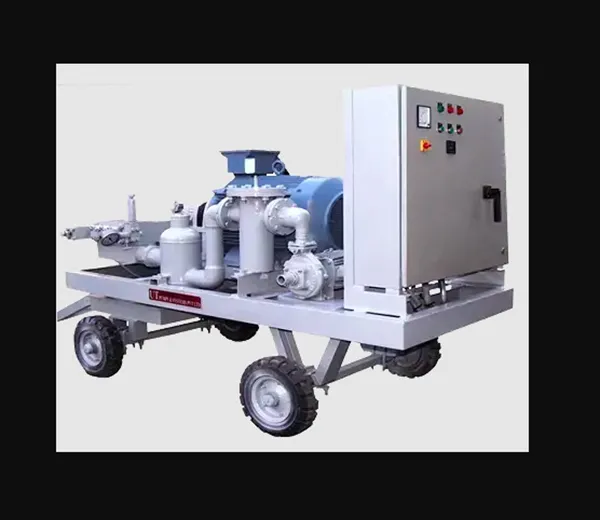

Pump being manufactured on Base Frame with anti vibrationpads also mounted on Solid Wheel/Pneumatic wheel trolley for easy movement.
Pump Head
The forged stainless steel SS-410/SS-420/SS-431/SS-304/SS-316 pump-head, duly Ultrasonically tested,accurately machined on CNC machines is suitable for safe operation . For special application other materials such as nickel plated steel are also available.
Three type of Fluid end are being used for different pressure range .
Flat Head A-Type
Used for High Pressure ( up to 1500 bar ) –Low discharge , used for high pressure water jet cleaning / cutting for sticky scale ,concrete cutting etc
Step Shaped Pump Head
Used for Medium Pressure ( approx. 500 bar ) –Medium Flow , allows direct access to identical & interchangeable suction & discharge valves without having to disconnect suction or discharge piping.
Flat Head C-Type / M-Type Pump Head
Used for Low Pressure ( approx. 300 bar ) –High Flow , allows direct access to identical & interchangeable suction & discharge valves , to meet customer requirement.
Crank Shaft
The forged alloy steel , duly ultrasonically tested , machined with accuracy , supported by heavy cylindrical roller bearing and driven by means of Built in Helical gears & pinion shaft drive with Herring bone Gear arrangement.
Crank Shaft driven with Pulley & Belt arrangement & with external gear box can be supplied.
The Ductile Connecting rod links have replaceable steel backed Bi-metallic bearing.
Lubrication of Bearings
Splash lubrication for intermittent operation.
Forced lubrication for continuous dduty operation.
Plungers
High surface finish ceramic plungers increase life of seals.
Carbide plungers for special applications.
Packings
High Pressure seal packaging of Aramid -Teflan offer least resistance & plungers.
Pressure Regulator
Flange mounted pressure regulator manufactured from forged steel with stepless adjustment from zero to max.
Safety Valve
Spring loaded safety valve provides protection against overload.
Features and Advantages
Faster cleaning than conventional cleaning like brushing , chemical , mechanical etc.
Require less man power
Reduce shut down time
Safe operation
Environment friendly operation
No Chemical used, only water is the cleaning agent
Do not damage equipment / tube
High Possibility to clean equipment without dismantling thus saving precious time and cutting costs.
Other Accessories – High pressure delivery hose , High Pressure Gun , Dump , Gun , Foot operated Valve , Dump Foot operated valve , NRV, Pneumatically operated NRV cum bypass valve , electrically operated bypass valve , Flexible lance , rigid lance , pipe cleaning nozzles , round jet flat jet nozzles , Aquablast cleaning system , descaling headers, Rotory nozzles , spin jet nozzles etc
