U.S. Webcon 138 Miles Road Paxinos, PA 17860

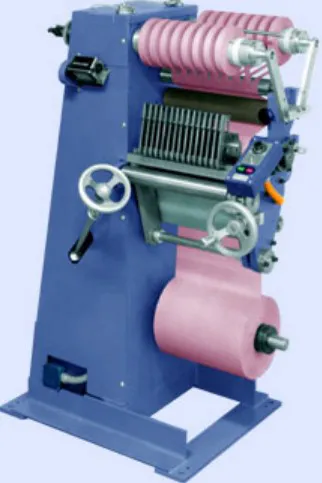

Our economical NSR slitting unit is ideal for tape, label, pilot plant, and laboratory applications. They are designed for slitting, salvage winding, and de-lamination of small rolls.
Slitting is performed by razor, score or shear cutting methods. The units feature multiple diameter differential or air-expanding rewind mandrels. All rolls are cantilevered with outboard supports. The vertical configuration facilitates loading, unloading, thread-up, and floor space conservation. The unit footprint is a mere 27 x 28 inches.
The following specifications represent the capability ranges for NSR slitting equipment:
web width:
24 " max.
line speed:
500 fpm max.
unwind diameter:
20" max.
rewind diameter:
18" max.
rewind core id:
1" min. to 3" max.
slit widths:
1/2" min.
