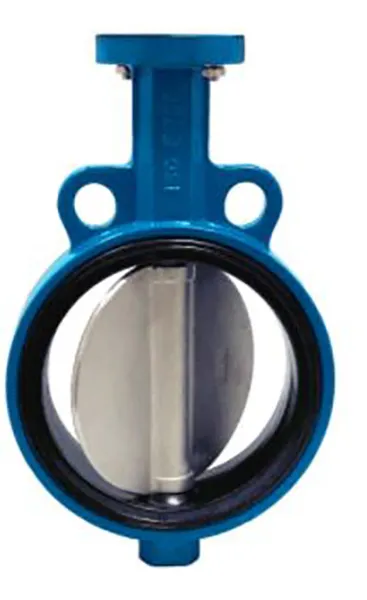

The Model BVW resilient seated butterfly valve is available in Buna-N, EPDM and Viton® configurations.
A fully-lined elastomer seat provides complete isolation of the process media from the ductile iron valve body.
All internal support hardware, including discs, braces and brackets are manufactured of corrosion-resistant stainless steel.
2” through 24” body sizes available in Class 150 ratings.
Wafer style body design includes ISO 5211 mounting pad for international standard manual and automated operators.
Elastomer U-cup seal packing gland and PTFE shaft bushing provide for superior leak protection.
All TECHNO Butterfly Valves are designed in accordance with API609 and tested to API598.
