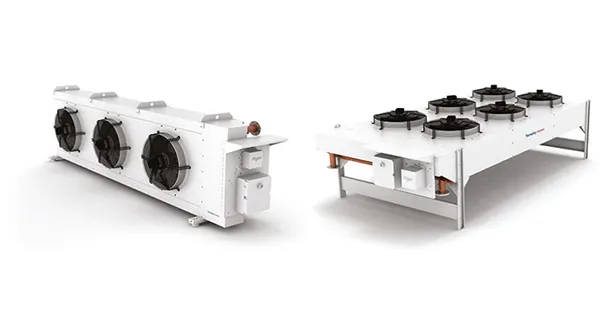

POWER-LINE DRY COOLERS

POWER-LINE DRY COOLERS

FEATURES

POWER-LINE DRY COOLERS

Performance range:

• Capacity from 8 to 890 kW(ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C)

Fans:

• Diameter Ø 500, 630, 800, 900, 1000 mm, AC or EC motor

Benefits:

• High efficiency geometry
• Modular design, 1-10 fans
• 8 sound levels
• Piping in copper or stainless steel AISI 304 or AISI 316L
• Finned pack available in a wide range of materials
• Complete range of accessories
• Casing in galvanized steel, powder painted

POWER-LINE DRY COOLERS (2 FAN ROWS)

Performance range:

• Capacity from 45 to 1123 kW(ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C)

Fans:

• Diameter Ø 500, 630, 800, 900, 1000 mm, AC or EC motor

Benefits:

• High efficiency geometry
• Modular design, 2-16 fans
• 8 sound levels
• Piping in copper or stainless steel AISI 304 or AISI 316L
• Finned pack available in a wide range of materials
• Complete range of accessories
• Casing in galvanized steel, powder painted
