Temcon Machinery

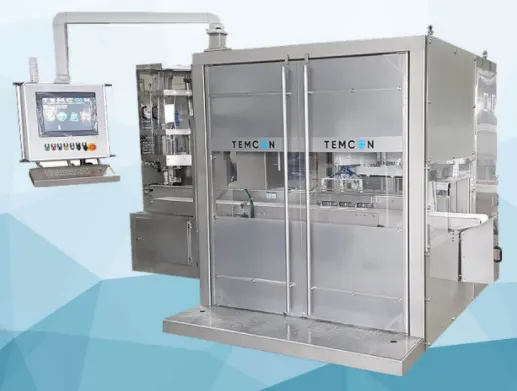

LA120

General DescriptionRobot Used: Mitsubishi Robot RH-1FHR series

 Operator Touch ScreenThe operation of the PLC is industrial PC based and operates on Windows. That’s make easy use of operator panel. Most of the document relating to the robot; like operation manual and electrical project is loaded so you don’t have search for the hard copy of the documents.

Products ReceiptsThere 50 receipts available for the products. The products information can be stored or uploaded via USB storage devices. If Temcon got the info regarding the products, we can upload before delivery of the machine. Also, full training will be given upon delivery.

Lid magazineThe lids are manually loaded to the magazine on correct position. The capacity of the each magazine is about 150 lids. (4x150=600 lid capacity)There is some safety on the lid magazine. If the operator loading the magazine, the lid rotating mechanism will not operate unless its fully loaded and cover is closed.The ejected lid goes to labelling unit if the labels needed. Now days the lid are produced with label. This technology calls in-mould. So you the producers of wet wipes do not have invested in label separately and use down time from labelling unit.Labelling Unit (Avery Dennison) (Optional as per customer request)Labelling unit is an option for the reasons mention above. In any case a labelling unit can be installed on later stages if needed.If the labelling need always there is space for the labelling unit. In high speed production, the producers can ask for the second labelling machine to save from down time and continuous production. For this option Temcon must be informed when the order placed.

Vacuum padsThere are 3 vacuum suction cup station. The vacuum pads pick the lids when arrived to correct position. This position is determined by a sensor. Also a sensor connected to the vacuum pads to make sure there is a lid picked up. Also that sensor sends signals to the hot melt unit to spray glue to the lid. That system makes sure if there no lids then no glue sprayed so the glue is not wastes and there is mass around.
