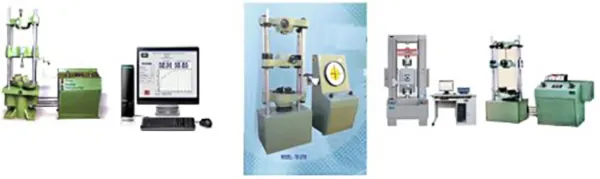

Servo Controlled Universal Testing Machine
Being a quality driven firm, we source the raw material from the certified vendors only who assure us for the quality and reliability of the material. As we have marked a distinct name in the market, we are recognized as the trusted organization for supplying quality Servo Control Universal Testing Machine.
Features
Loading accuracy as high as ±1%
Straining roll autographic recorder supplied as standard to enable study at the behaviour of materials.
Motor driven threaded columns for quick effortless adiustment of lower Crossthead to facilitate rapid fixing of test specimen.
High reading accuracy due to large size and design of dial.
Wide range at standard and special accessories, induding load stabilizer.
Easy change from plain to threaded and screwed specimens.
Large effective clearance between columns enables testing of standard specimens as well as structures.
Simple controls for ease of operation.Robust straining frame at an extremely rigid construction.
Safe operation ensured by means of safety devices.
Fully enclosed and protected pendulum.
AppicationsTee-sol Universal Testing Machine is designed for testing metals and other materials under tenstion, compression bending, transverse and shear loads. Hardness test on metals can also be conductedAccuracy & Calibration
All Tec-sol Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every Machine is then calibrated over each at its measuring ranges in accordance with the procedure laid down in British Standards 1610: 1964 and 15: 1828-1975. Tec-sol Universal Testing Machines Comply with grade "A“ of BS : 1610 : 1964 and grade 1.0 of15-1828-1975 An accuracy of + 1 % is guaranteed from 2096 of the load range selected to full load. Bellow 20% of the selected range, the maximum permissible error is 0.2% of the full reading.
