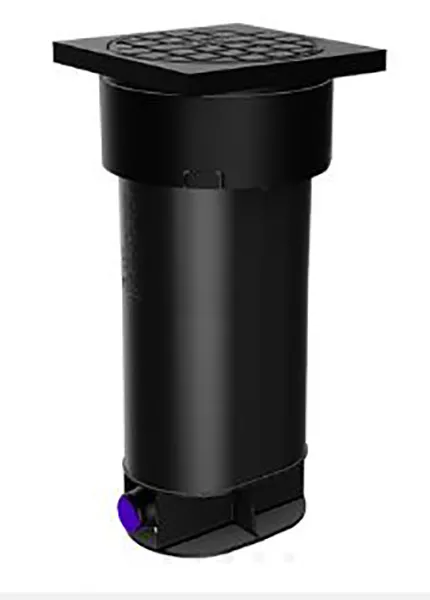

MATRIX Plus Meterbox
MATRIX Plus Meterbox
Reduced environmental impact as the guard tube is made from recycled black polypropylene
Improved ground retention to give greater stability and to give more space for feet to hold it down whilst making telescopic height adjustment
Integrated holding clips on the surface box for greater reliability
Optional NRV to eliminate overpressure in the box, to make lid levelling easy
Optional Grade B surface box with rotatable square trim for installation in paved areas
Meets new standard BS 5834-1:2017
Improved point load resistance. More ductile material in the guard tube protects against damage from loading from sharp stones in the soil
Improved design to ensure performance of seals and retention of manifold
Product Description
The MATRIX PLUS is the latest generation of the popular MATRIX boundary box, incorporating all the benefits of previous models plus new features and improvements. It is a telescopic, self contained chamber system that is used to provide a safe and clean underground environment for concentric water meters. Its small, stable footprint makes it easy to install with minimal excavation. The fully sealed box is height adjustable and comes with a rotatable tilt lid to align with paving material and gradients. It comes with integrated pipe connections, isolating valve and meter carrier.
Telescopic Chamber
One single moulding reduces the risk of ground water getting into the system. The telescopic chamber combined with a final height adjustment of up to 50mm in the surface box gives excellent overall height adjustment.
Ease Of Installation
Small, stable footprint makes it easy to install in congested trenches and requires minimal excavation. Now with larger surface area on the base plate to allow more backfill material around the base during installation which gives more stability to aid height adjustment. The round surface box has a removable square flange that makes correct back filling easy. The surface box flange can also be rotated through 360° and the surface box has up to 8° of tilt making alignment with paving materials and gradients simple.
Ease Of Operation
The surface box lid provides excellent visibility and access to the meter and shut off device. The standard shut off device is a 1/4 turn ball valve that greatly reduces head loss and has a built in stop.
16 Bar Pressure Rating
The 16 bar pressure rating not only exceeds the 8-10 bar normal working pressure, it also exceeds the typical 12 bar pressure rating of the pipe.
Flexible Connection System
Talbot Pushfit inlets and outlets are available in 25mm and 32mm as well as ½" Irish heavy gauge.
