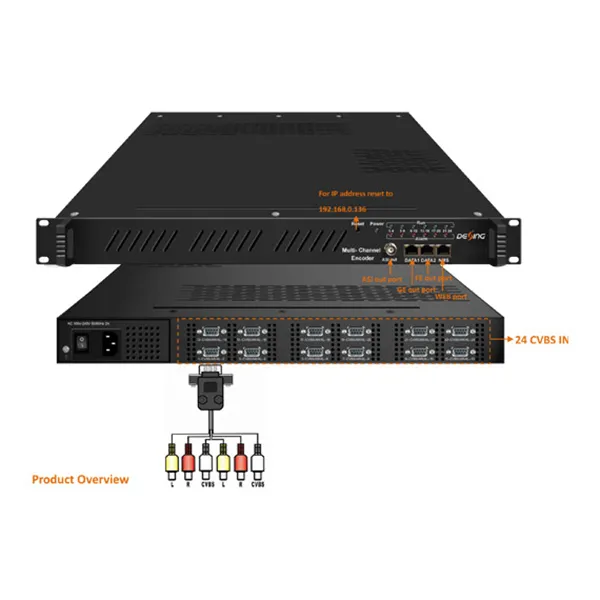

CONTROL ROOM EQUIPMENTS NDS3542L

NDS3542L Multi-Channel encoder is a professional HD audio & video encoding and multiplexing device. It has 8/12/16/20/24 HDMI video input interfaces, and supports MPEG-4 AVC/H.264 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8/12/16/20/24 channels HD audio & video; moreover, the IP output can support 1MPTS and 8/12SPTS (8/12 HDMI inputs) IP output from Data1 or Data2, and support 1 MPTS or 16/20/24 SPTS (16/20/24 HDMI inputs). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

• 8/12× HDMI inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2
• 16 /20/24× HDMI inputs with 16 /20/24 SPTS or 1 MPTS output through Data 1 or Data 2
• MPEG4 AVC/H.264 video encoding format
• MPEG1 Layer II audio encoding format, and audio gain adjustment
• 1 ASI output (optional) as copy of MPTS
• IP output over UDP and RTP protocol
• Support QR code, LOGO, caption insertion (Language Supported: 中文, English, ال عرب ية , ไทย, हिन्दी, руская, اردو for more languages please consult us…)
• Support “Null PKT Filter” function
• Support PID Remapping/ PCR accurate adjusting
• Control via web management, and easy updates via web
