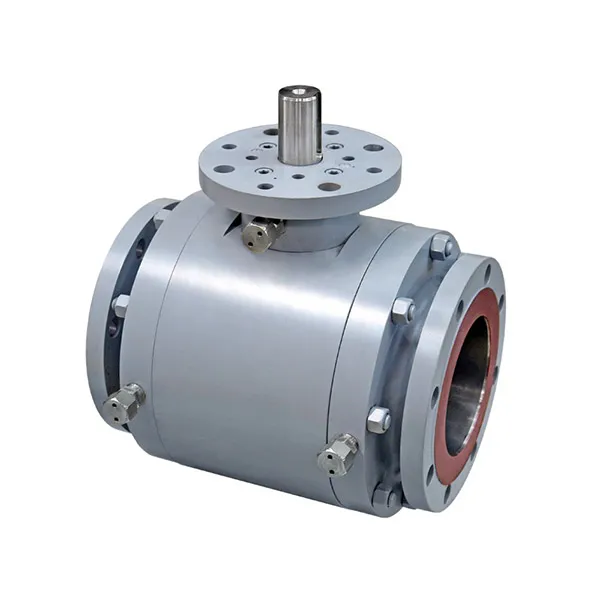

Flanged ball valves S30T series

Flanged ball valves S30T series

Type	Trunnion ball valves
Size Range	1” ÷ 24” (DN25 ÷ DN600)
Valve complying with	Design: API 6D (ISO14313)
	Raised face: ASME B16.5, EN 1092-1
	Face to Face: API 6D, ASME B16.10, EN 558-1
	Testing: API 6D, API 598
	Design FIRE SAFE API 607, ISO 10497, API 6FA
Standard design temperature	-29 °C ÷ +200 °C (-20,2 °F ÷ +392 °F)
Pressure class	ANSI150 – 300 – 600 – 900 – 1500 – 2500
Max working pressure	20 bar for class ANSI150
(at temperature below 38°C,	50 bar for class ANSI300
in according to ASME B16.34)	100 bar for class ANSI600
	150 bar for class ANSI900
	250 bar for class ANSI1500
	420 bar for class ANSI2500
Leakage class	NO leakage
Flange drilling	Standard complying with ASME B16.5
	On request with EN1092-1
Type end	Standard: RF (Raised Face ASME B16.5)
	On request: RJ (Ring Joint ASME B16.5)
	BW (But Welding ASME B16.25)
Standard Certifications	PED 2014/68/UE
	ATEX 2014/34/UE
Additional certifications	EAC TR-CU 10, TR-CU 32

Standard features

Standard double block sealing performance.
Full die forged structure for all pressure containing parts.
Flanged valves are provided with flanged integral with closure member.
Standard primary gasket design is OR AED type, secondary emergency seal always provided for fire-safe purpose.
High quality stem gasket for reliable tightness and low emission performance.
Use of low seat-ball friction materials and surface finish for reliable sealing and long service life.
Best-in-Class CV values.
Standard split & bolted design for body-closure connection.
Low operation torque design.
Static conduction spring is used as standard between the stem and the ball (Antic-Static Device).
Anti blow-out proof stem design.

Technical Specs
