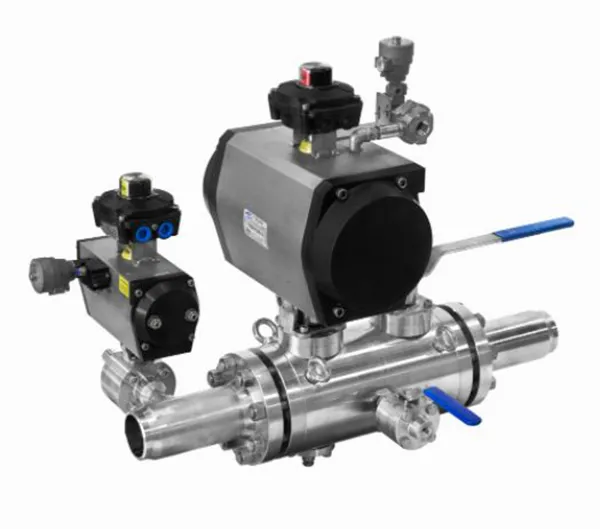

Block & Bleed Ball Valves
Features & Benefits
Class 150 to Class 2500
Size Range ¼” thru 16” (Class Dependent)
Single and Double Isolation, Multi-Port Designs Available
Floating and Trunnion, Full and Reduced Bore
Bolted Body Facilitates Inline Maintenance
Venting/Relief Designs in Multiple Configurations
End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
Fugitive Emissions ISO 15848
Fire-Safe Tested API 607
Anti-Static Device and Live-Loaded Packing
Guided Seat Design on Trunnion Design
Blowout Proof, Low Torque Guided Stem Design
Wide Range of Soft and Metal Seated Options
Manual, Electric, or Pneumatic Operators Available
Custom Face-to-Face Lengths Available
