PolyCendos
PolyCendos
Continuous flow polymer preparation unit
Overview

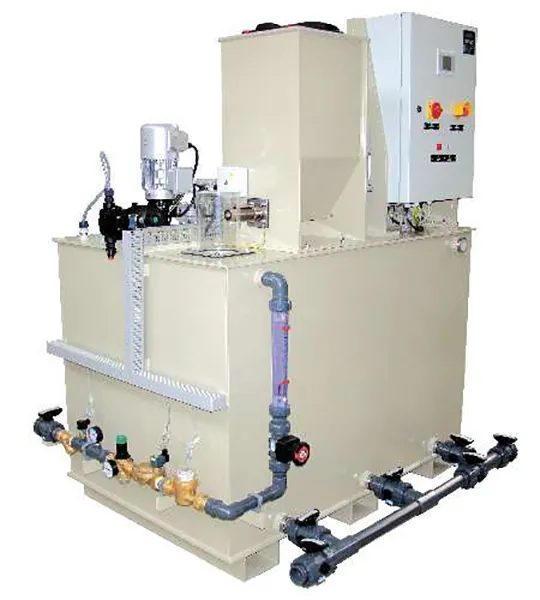

PolyCendos is an all-in-one polymer preparation system for the batching of liquid and powder flocculants in a broad range of water-treatment applications in industries such as wastewater, paper, chemical, petrochemical and mineral processing.
This triple-chamber continuous-flow system is available in six models to suit every application, with control panels, powder feeder, diaphragm dosing pumps, mixers and stirrers all integrated into a single solution.
Designed for heavy-duty water-treatment environments, PolyCendos’ dissolving, maturing and storage chambers are constructed entirely in polypropylene with batching screws in stainless steel for outstanding corrosion resistance.
Intuitive control allows users to easily calibrate the powder metering unit and liquid concentrate pump, with batching adjustment managed via a precise speed regulator. Meanwhile, conductivity level probes alert operators to high, low and critically-low levels via emergency warning light.
Features
- Each chamber is fitted with a tightly-secured inspection cover and emptying valve
- User-guided input of solvent concentration
- Minimal product carry over
- Programmable logic controller (PLC)
- Control cabinet for automatic control of the entire system
- Optional automatic control panel version with proportional polymer dosage
- Version with terminal box available on request
Specification
- Extraction rate up to 16,000 l/h
- Liquid polymer concentration: 0.05 – 1%
- Powdered polymer concentration: 0.05 – 0.5%
