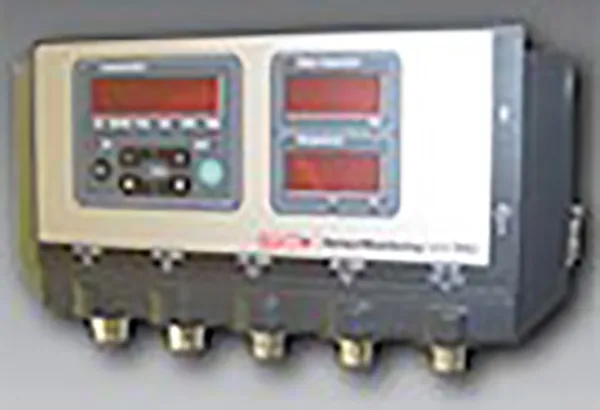

SensorMonitoring Unit

The SMU1200 Sensor Monitoring Unit is a display unit for the HYDAC fluid sensors which is designed for the display and storage of the measurement data. The following combination of fluid sensors can be connected directly: Contamination Sensor CS 1000 and Aqua Sensor AS 1000, Metallic Contamination Sensor MCS 1000 and Aqua Sensor AS 1000.
Simple installation parallel to the customer system (Hydac Sensor Interface HSI for SMU 1200, forwarding of the sensor's own analogue and switching outputs)
Simple installation by means of magnet holder or top-hat rail installation
High protection class with IP67, no switch cabinet construction required
Plug & Work unit including the necessary 5 m connection cable for direction connection of the sensors (sensor connections via M12x1 plug-in connectors, no programming required)
Depiction of the measurement data on large display screen
Simple operation per keyboard
Data memory in SMU with date and time stamp
Reading out the measured values with the supplied (commercially available) USB memory stick via USB master socket
Simple data processing and data evaluation by means of MS-Excel or HYDAC Fluid Monitoring software FluMoS
Automatic program start after resumption of voltage, no loss of measurement data
