Why use a Two Speed Hydraulic Hand Pump?
A Two Speed Hydraulic Hand Pump fits two pumps into a single pump body. There is a larger displacement low pressure pump, a small displacement high pressure pump and some means of changing from low pressure to high pressure. Get the right pump and you can cut your number of stokes or handle effort enormously. We can help you to select the right pump for your application.
Our application note on https://sarum-hydraulics.co.uk/blog/two-speed-hydraulic-hand-pump/ explains the basics. If your job requires a lot of pumping at relatively low pressure, as for example in opening a ball valve, a Two Speed Hydraulic Hand Pump can cut the number of strokes dramatically. If you are running up to 700 or 1000 bar, then you may find using a very small displacement single speed hand pump to be hard work on a larger system. All we would say is do the arithmetic. Sometimes the extra cost and complexity over one of our MW-3 stainless or MW- Single Speed Double Acting Hydraulic Hand Pumps is not worth it. The number of strokes may be the same. Some applications don’t work at all with two speed pumps.
We are fans of manual changeover units. Automatic changeover units can be sudden and unpredictable. That could be a worry if you are on site and working at height. If you are running on water or more demanding fluids, we like a no-nonsense manual valve rather than something that could be prone to corrosion or leakage.

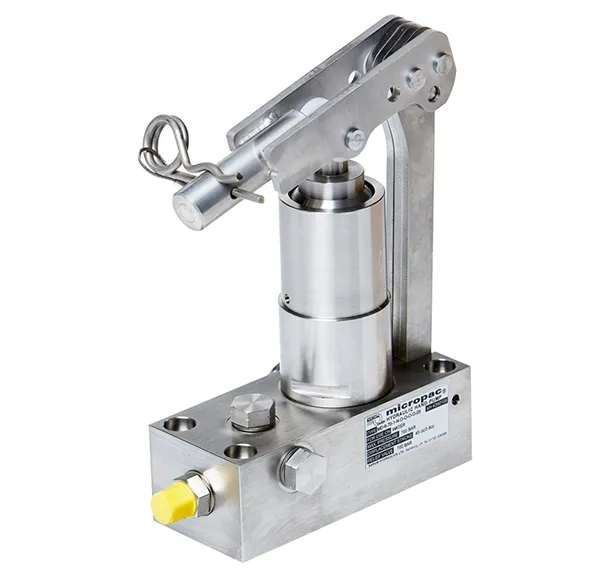

Our MD series Two Speed Hydraulic Hand Pump draws on 30 years of experience to provide a rugged, compact and cost-effective unit. It is a stainless steel unit that challenges the widely used legacy aluminium alloy and steel pumps in the market place. Pressures of 450, 700 and 1000 bar are offered. If you need a rugged 450, 700 or 1000 Bar Hydrostatic Pressure Test Set complete with a portable reservoir and for use on water or oil, then the Micropac MD series will provide a long service life. All the valve seats are replaceable and service kits readily available.
The 89mm square industry standard format has been around for decades, currently used on hand pumps for multi fluid hydrotest and hydraulic power units such as the Hydrapak, HMP & MHX (Trade marks acknowledged.) Some 25 years ago, we developed our own version as an OEM and volume user pump. It offers 100% retrofit and the best of Micropac technology including true multifluid capability, replaceable soft/poppet check valve seats for long life, low cost spares and easy seal compound upgrade. Our PSP two speed pump to 1000 bar unit is available as a component pump or on a 15 litre portable reservoir.
Our MH series tandem pump is a specialist Micropac pump, offering two discrete double acting pumps in the one pump body. The MH series tandem pump can be connected to provide a range of pressures. These tandem pump units are also used for pressurise inlets, as the balanced design stops the handle from “kicking” up. Talk to us about your application for our MH series Tandem Hand pump for two speed or pressurised inlet application.
