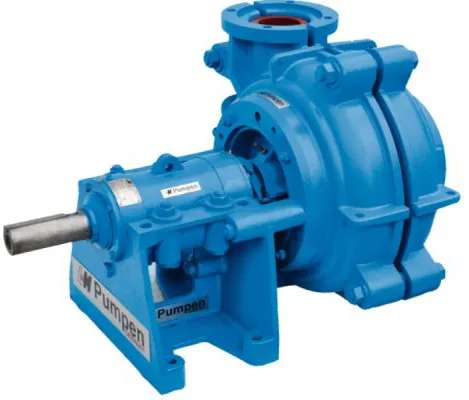

LMW ONE Slurry Pump
The LMW-ONE is a horizontal slurrypump for heavy duty applications.
Capacity up to 5.400 m3/h
Total head up to 118 m.w.c.
Pressure up to 16 bar max
Working temperature from - 30° up to 95° C
Features:
Different ranges of impeller available:
Open impeller and non-clog impeller with 2, 3, 4 or 5 vanes
High efficiency
Heavy bearing
Modular design
Wide range of sealing systems
Oil or Grease lubricated
Different materials available
Modular System:
One frame for two different, oversized bearing cartridges, which are designed with a large diameter shaft and short impeller overhang for minimized deflection and a long bearing life. This will be the base for two different pumps of LM type ONE. A) a wear resist pump out of hard metal – and b) a pump with rubber coated parts.
