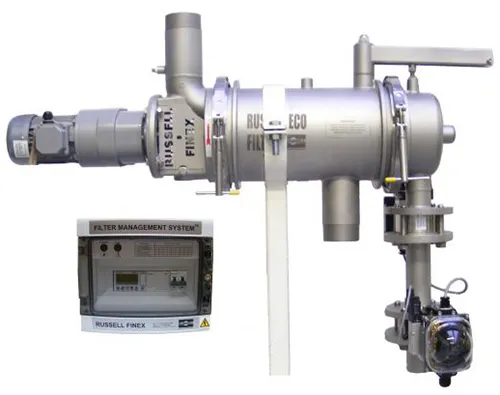

Filter Management System

Automatic filtration to continuously monitor the filtration process without operator involvement

Remove operator involvement with the Russell Filter Management System™ (FMS). The system continuously monitors your filtration process, enabling the filter to run efficiently without operator involvement. This means reduced labor costs and increased productivity.

Two pressure transmitters, mounted on both inlet and outlet connections, allow the system to monitor the differential pressure across the filter element as well as the upstream line pressure. The system can also be set up to operate the valves on a timed basis. This information is used to control the four main functions of the system.

• Time controlled valve operation – the system can be set to automatically discharge oversize contamination on a predetermined time interval

• Differential pressure control valve operation - the system can be set to automatically discharge oversize contamination on a predetermined maximum differential pressure

• Maximum screen differential pressure indicator/warning - to protect your screen from damage

• Line over-pressure indicator/warning - to protect your filter and operators from harm
